Choosing cable tray ladders for solar power system

Cable tray ladders are essential components in managing the cabling infrastructure of a solar power system. Selecting the right type is crucial for ensuring the system’s efficiency, safety, and longevity.

Tiêu chuẩn IEC 61537 là tiêu chuẩn về Quản Lý Cáp (Cable management). Phiên bản mới nhất hiện nay là IEC 61537:2023. Cable management – Cable tray systems and cable ladder systems.

Tiêu chuẩn quốc tế về Cable tray ladder

Go IEC 61537 homepage

Factors to Consider
Here are the key factors to consider when choosing a cable tray ladder for your solar power system:

1. Cable Capacity and Loading:

Number and size of cables: Determine the total number and size of cables to be accommodated.
Cable weight: Calculate the total weight of the cables to ensure the ladder can support the load.
Fill percentage: Maintain adequate space for air circulation to prevent overheating.

2. Environmental Conditions:

Outdoor or indoor installation: Choose materials resistant to weather elements if outdoors.
Corrosion resistance: Select materials that can withstand harsh environments, especially near coastal areas.
Temperature range: Consider the operating temperature range of the system.

3. Material of cable tray ladder:

Steel: Strong and durable, suitable for heavy-duty applications.
Aluminum: Lightweight and corrosion-resistant, ideal for outdoor installations.
Stainless steel: Excellent corrosion resistance, but more expensive.

4. Ladder Type:

Solid bottom: Provides additional support for heavier cables.
Perforated bottom: Allows for better ventilation and cable management.

5. Ladder Width and Depth:

Width: Choose a width that accommodates the cable bundle.
Depth: Select a depth based on the cable size and number.

6. Ladder Length and Span:

Length: Determine the required length for each section.
Span: Consider the maximum distance between supports.

7. Installation and Maintenance:

Ease of installation: Choose a ladder with simple installation methods.
Accessibility: Ensure easy access for maintenance and cable additions.

Additional Considerations

Code Compliance: Adhere to local electrical codes and standards.
Cost: Balance the cost of the cable tray ladder with its long-term benefits.
Aesthetics: Consider the appearance of the cable tray, especially for rooftop installations.
Recommended Cable Tray Ladders for Solar Power Systems
Aluminum ladder: Often preferred for outdoor installations due to its corrosion resistance and lightweight properties.
Perforated bottom ladder: Provides better ventilation, essential for preventing overheating of cables in solar systems.
Example of a Cable Tray Ladder System

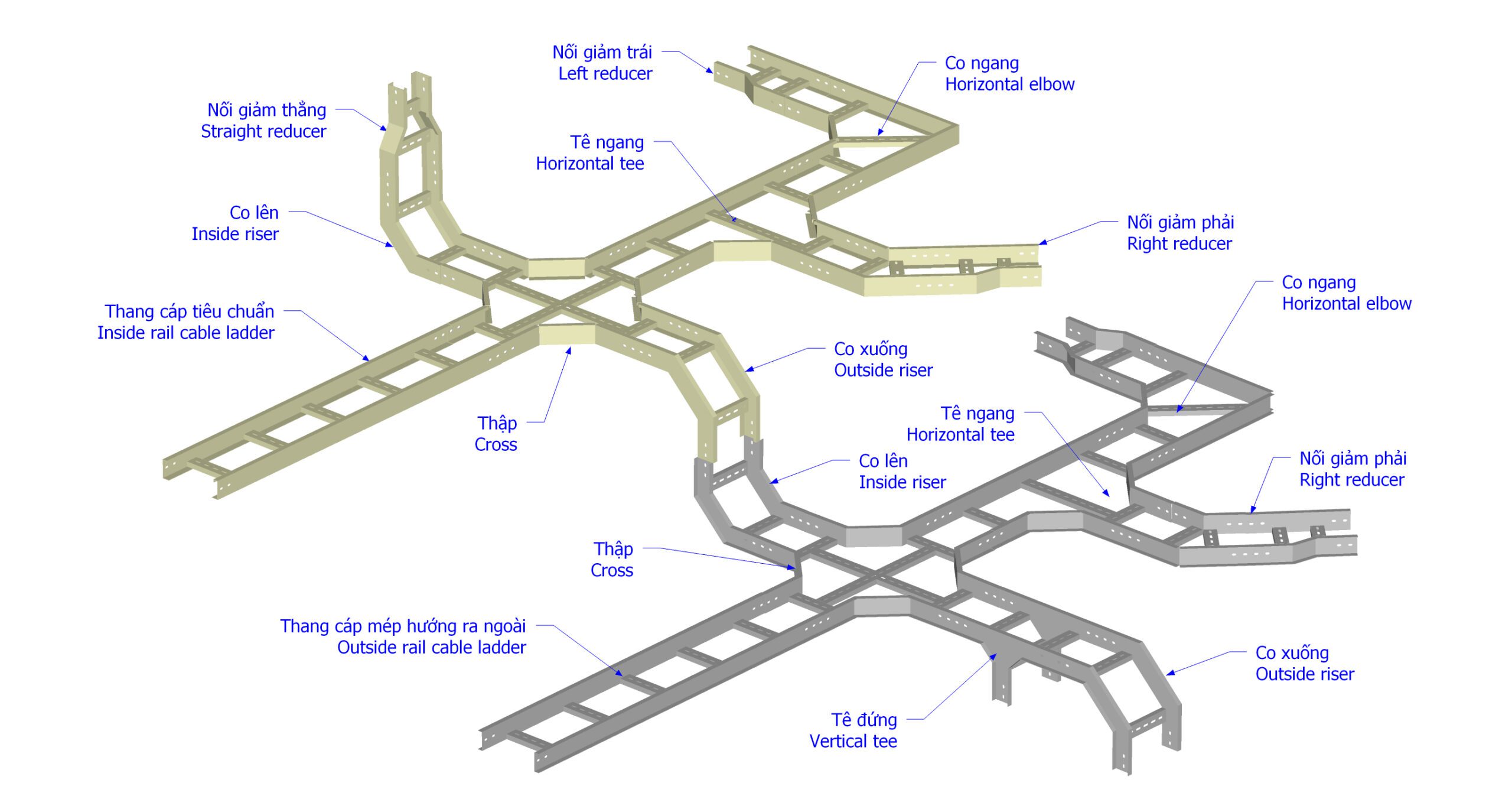

Cable tray ladder type

Cable tray ladder system installed in a solar power plant

Cable tray ladder system installed in a solar power plant
By carefully considering these factors and consulting with a qualified electrical engineer, you can select the most suitable cable tray ladder for your solar power system.

Would you like to discuss specific details about your solar power project, such as cable types, installation location, or environmental conditions?

This information would help me provide more tailored recommendations.
